Connect and Power the Dashcam

WARNING: Ensure that all wiring and installation steps do not interfere with any airbag systems or the vehicle’s normal operation.

To use all features of the AI-14 dashcam, including Standby mode, connect it to a constant 12V or 24V power source with a minimum of 2A. For OBD-II installations, this is achieved by connecting the AI-14 OBD-II Power Only Cable to the vehicle’s OBD-II port.

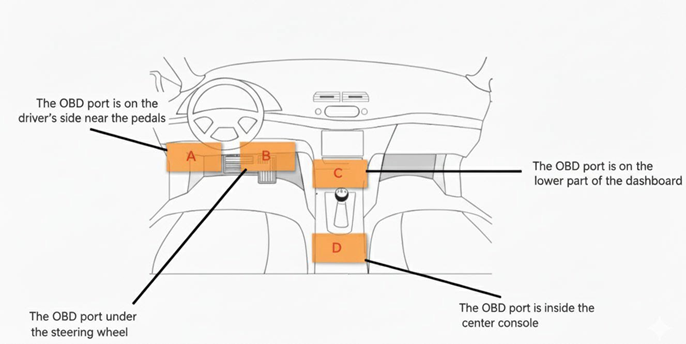

The OBD-II port is located in the driver’s compartment, typically under the dashboard near the driver’s knees, or behind a small access panel. The images below show left-hand drive (LHD); right-hand drive (RHD) is the reverse.

OBD-II Port Location.png

NOTE: Some vehicle manufacturers now require an open OBD-II port. The AI-14 OBD-II Power Only Cable uses a Y-cable design to keep the port accessible.
NOTE: While in standby mode, you can retrieve recordings from the dashcam. This will activate full power consumption, which may affect vehicle battery storage.





Connect to the Vehicle’s OBD-II Port

  1. Locate the on-board diagnostic port, usually found in the driver area, at or below knee level.
    OBD Location Vehicle.png

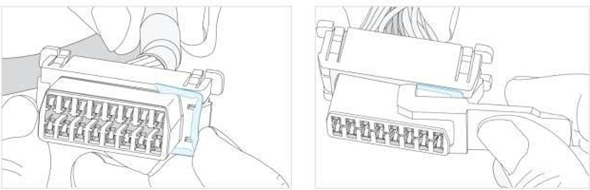

  2. Select the correct adaptor for your vehicle type and slide it over the female OBD-II port on the Power Only Y-Cable. Insert the metal ‘C’ clips by hand. To remove the clips, use the tool shown below.
    OBD Adapter.png

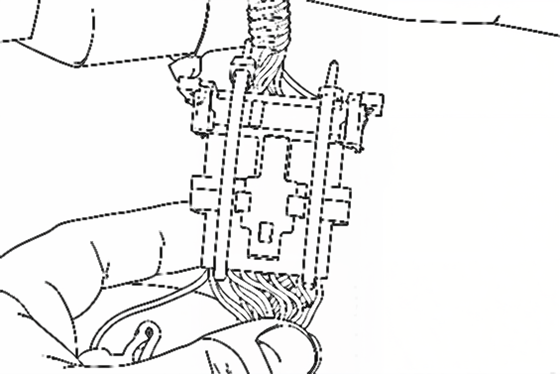

  3. Connect the OEM OBD-II female port to the 16-way male port on the Power Only Y-Cable and secure with cable ties.
    OBD Connector.png

  4. Route the AI-14 OBD-II Power Only Cable (Molex plug) from the vehicle’s OBD-II port to the dashcam’s mounting area. Ensure the connected Molex plug remains accessible for future maintenance.

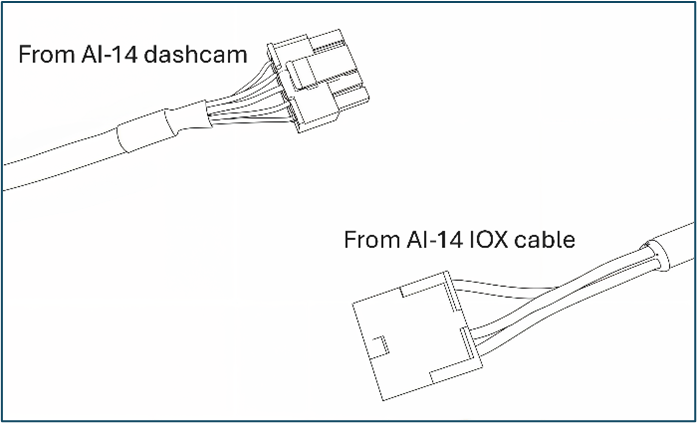

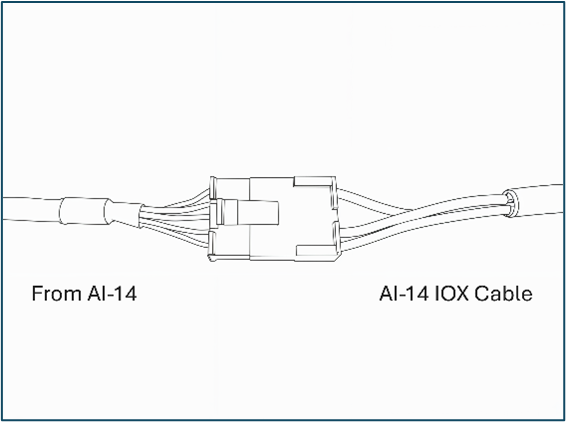

  5. Temporarily connect the female Molex plug on the Power Only Cable to the male Molex plug on the dashcam.
    • Do not route the Molex plug behind panels at this stage. The temporary connection is for validating the mounting position.

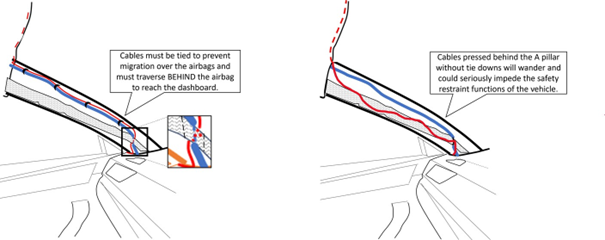

  6. Route the power cable to avoid all SRS (Supplemental Restraint System) components, including airbags. Secure with cable ties every 30 cm (12 in) along its length.
    Cable Routing.png

  7. Route the cable away from sharp edges and moving parts. Do not route cables where they could be pinched, such as in door jambs or check straps.

  8. Confirm the connected Molex plug is accessible for future maintenance.

  9. Secure cables with cable ties at regular intervals (every 30 cm / 12 in) so that cables are held firmly in place without sagging.

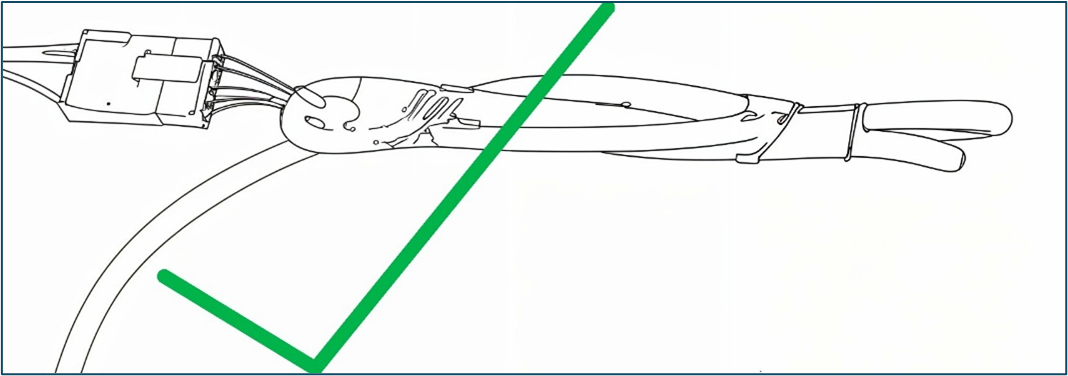

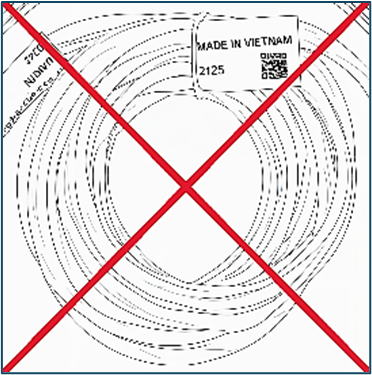

    • Do not loop excess cable. Form a flat, elongated bundle shape and secure with cable ties.
      Loop No.pngCable Bundle.png

  10. Start the vehicle to test the dashcam.

  11. Validate the dashcam’s mounting location using the Live View function (see Mount the Dashcam).

  12. Secure all installed components and cable runs. Replace any vehicle panels that were removed.

  13. Complete the installation and test all components.





Adjust Dashcam Settings

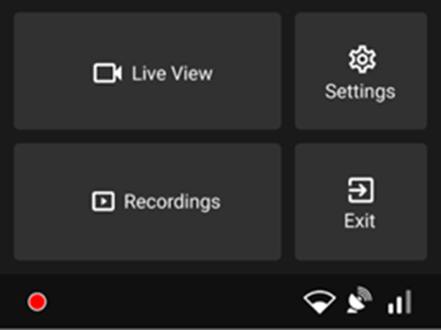

Enter the default PIN 3333 to unlock the dashcam for the first time, or enter your own administration PIN subsequently.

AI-14 Settings.png

Before leaving site, power on the dashcam and adjust the following settings in the Settings menu.

  • Driver Position: Left or Right
    Driver Right.png
  • Speed Units: km/h or mph
    Driver Left.png


Configure Virtual Ignition

Configure the virtual ignition in the dashcam’s Settings menu. Virtual ignition must be ON for OBD-II connections so that the dashcam activates when it detects vehicle movement.

Virtual Ignition.png

After completing the installation, confirm that the vehicle is operating normally and that no unintended changes have occurred.
