Mount the Dashcam

5.1 Position and Install the Mounting Bracket

Step 1: Select and Prepare the Mounting Location

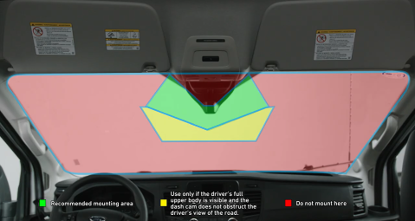

1. Choose a windscreen location that does not obstruct the driver’s view, vehicle controls, visor, or the SRS.



2. Using the Live View function, temporarily position the dashcam to confirm clear views, then mark the spot.
3. Clean the marked area thoroughly with the alcohol wipe and allow it to dry completely.

WARNING: Make certain that neither the wiring cables nor your installation activities interfere with any SRS-related mechanisms or otherwise risks affecting SRS airbag deployment. Consult the vehicle manufacturer for the location of any airbag sensors, systems, and restrictions that may apply.

Step 2: Attach the Bracket to the Marked Area on the Windscreen

1. Peel off the adhesive cover.
2. Align the mounting bracket with the marked spot and apply even pressure, rolling it onto the windscreen from top to bottom.
3. Smooth out any large air bubbles by applying more pressure. If necessary, use a small pin to release trapped air.
4. Wait 10 minutes before attaching the dashcam so the adhesive can set.

5.2 Secure the Dashcam to the V1 or V2 Mounting Bracket

Follow the instructions for your bracket type.

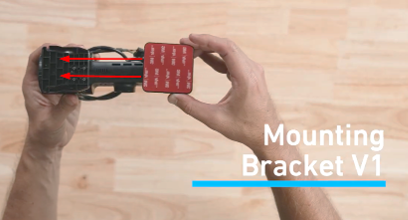

AI-14 Mounting Bracket V1 The dashcam slides into this bracket from the right side and locks into place with two locating tabs.	AI-14 Mounting Bracket V2 The dashcam slides into this bracket vertically and is secured with two Torx T6 screws.

(V1) Step 3: Secure the Dashcam to the V1 Bracket and Confirm Views

The dashcam slides into the V1 bracket from the right side and locks into place with two locating tabs. Be sure to leave at least 12.5 cm (4.9 in) to the right of the dashcam to allow room for insertion.

To attach the dashcam to the V1 mounting bracket:

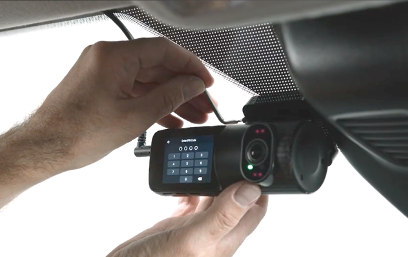

1. Slide the dashcam body into the mounting bracket from the right side until it clicks into place.



2. Power on the dashcam, go to Live View, and verify clear in-cabin and road-facing lens views.
   • See Section 4 for lens view guidance.
3. Tighten the Torx T6 screw where the mounting bracket meets the dashcam body to lock the dashcam angle and view in place.

NOTE: Do not overtighten. The T6 has a torque specification of 0.8 Nm.

(V2) Step 3: Secure the Dashcam to the V2 Bracket and Confirm Views

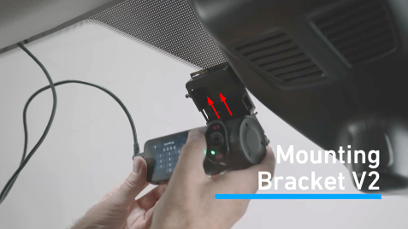

The dashcam slides into the V2 bracket vertically and is secured with two locating tabs and two Torx T6 screws.

To attach the dashcam to the V2 mounting bracket:

1. Slide the dashcam body upwards into the bracket until the locating tabs click.



2. Secure the two Torx T6 screws on either side of the mounting bracket.



3. Power on the dashcam, go to Live View, and verify clear in-cabin and road-facing lens views.
   • See Section 4 for lens view guidance.
4. Tighten the Torx T6 screw where the mounting bracket meets the dashcam body to lock the dashcam angle and view in place.

NOTE: Do not overtighten. The T6 has a torque specification of 0.8 Nm.
