Each auxiliary camera comes with cables and accessories for the installation.
-

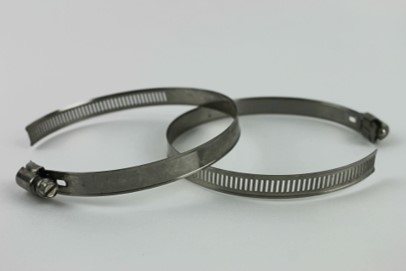

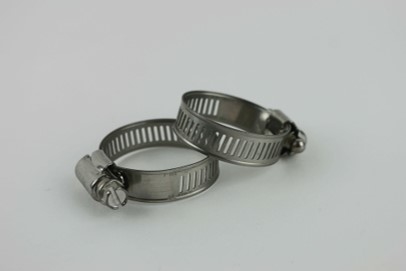

DC-ACE-01 Wired auxiliary camera with wrap mount - the wired cameras with wrap mount include a power cable, hose clamps, and a silicone pad. M12/RJ45 network extension cables can be purchased separately using our order form.
-

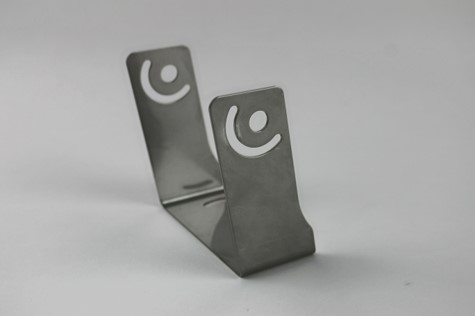

DC-ACE-02 Wired auxiliary camera with flush mount - the wired cameras with flush mount include a power cable and mounting bracket. M12/RJ45 network extension cables can be purchased separately using our order form.
-
DC-ACW-01 Wi-Fi auxiliary camera with wrap mount - the Wi-Fi cameras with wrap mount include a power cable, hose clamps, and a silicone pad.
-
DC-ACW-02 Wi-Fi auxiliary camera with flush mount - the Wi-Fi cameras with flush mount include a power cable and mounting bracket.
Note
Wrap-mount cameras are also known as side cameras. Flush-mount cameras are also known as rear cameras.
Note
Auxiliary camera mounting brackets are different than dashcam mounting brackets. They cannot be used interchangeably.
The cables and additional accessories are further described in these sections: Auxiliary camera cables and Auxiliary camera accessories.
The following table provides details about the cables used with the auxiliary cameras:
|
Part name |
Camera type |
Description |
Where to order |
|---|---|---|---|
|
Power cable |
Wired |
A 1.8 meter power cable comes attached to the auxiliary camera and connects it to the vehicle power. The cable has two wires:
|
Comes in the box, attached to the auxiliary camera |
|
Wi-Fi |
A 3 meter power cable comes attached to the auxiliary camera and connects it to the vehicle power. The cable has two wires:
|
||
|
M12/RJ45 network extension cable |
Wired |
The cable converts from M12 to RJ45 and extends the reach between the auxiliary camera and router. You can order them in either five or twenty meters. |
From the order form |
The table below provides details about the accessories used with the auxiliary cameras:
Note
All accessories come in the auxiliary camera box for the camera type that is indicated in the Camera Type column.
