There are four types of auxiliary camera available:
|
Camera type |
Wi-Fi |
Wired |
|---|---|---|
|
Wrap mount (also known as side) |
DC-ACW-01 Wi-Fi auxiliary camera with wrap mount |
DC-ACE-01 Wired auxiliary camera with wrap mount |
|
Flush mount (also known as rear) |
DC-ACW-02 Wi-Fi auxiliary camera with flush mount |
DC-ACE-02 Wired auxiliary camera with flush mount |

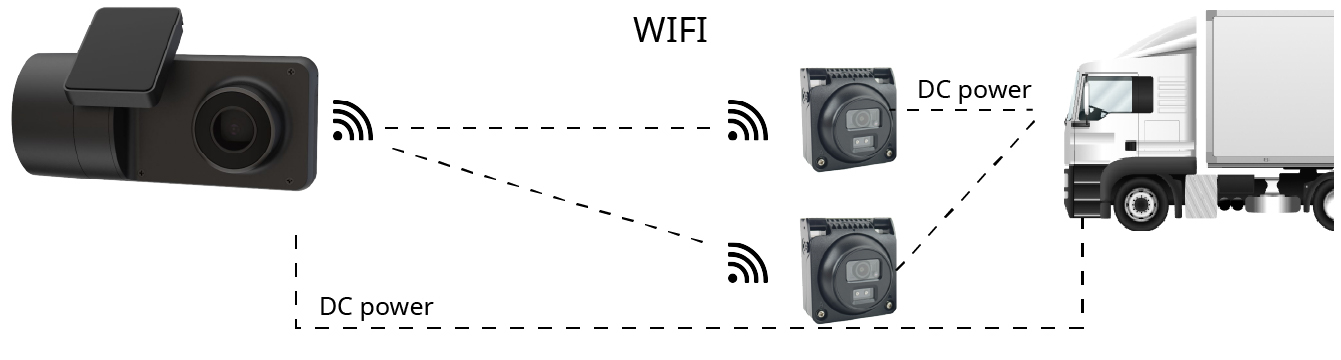

Wi-Fi auxiliary cameras pair to the dash cam through Wi-Fi, and do not need to be physically connected to a router. Using Wi-Fi makes installation easier.
We recommend using the Wi-Fi auxiliary camera models when installing near the main dash cam, such as on the side mirrors.
In other locations, we recommend connecting using a wired solution . See The dash cam Wi-Fi and hotspot for more information.
Note
We have tested connecting the dash cam with up to four auxiliary cameras of either only wireless or only wired models.

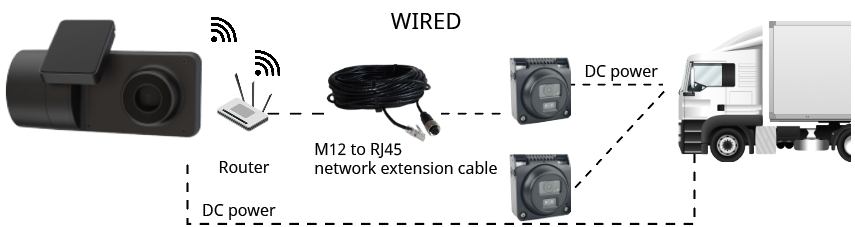

Wired auxiliary cameras are hardwired to a router that is paired with the dash cam. If the auxiliary camera is going to be mounted in any location farther from the main dash cam than the area of the side mirrors, use the wired option. This increases reliability.
Note
We have tested connecting the dash cam with up to four auxiliary cameras of either only wireless or only wired models.

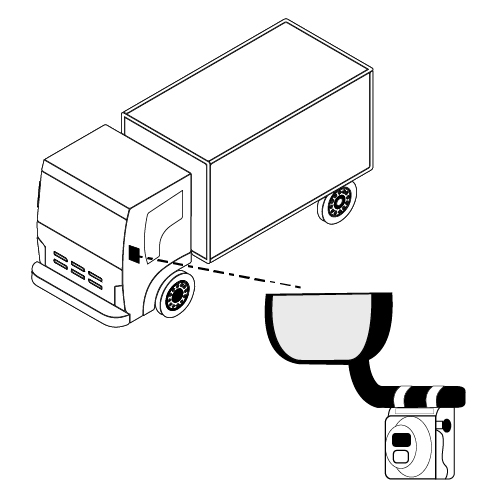

Wrap-mount cameras come with hose clamps and a silicone pad. They are mounted on the mirrors of the vehicle.

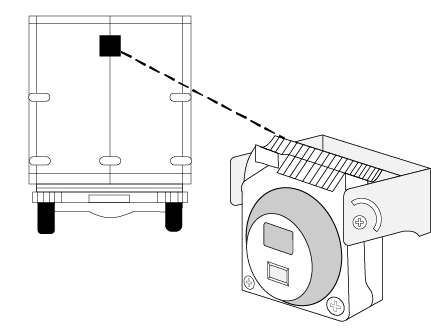

Flush-mount cameras come with a mounting bracket. They are screwed onto the vehicle, generally at the back.
