DC-ACW-02 Wi-Fi auxiliary camera with flush mount specifications

Surfsight®auxiliary cameras are cameras connected to the Surfsight®dashcam. When connected to the dashcam, the cameras enable live video and recording from the portal of additional perspectives during trips. The cameras are installed around the vehicle in key locations. All auxiliary cameras include a 64 GB SD card that stores approximately 100 hours of recordings. When the SD card is full, new recordings overwrite the oldest recordings.

Note

The power cable comes attached to the camera. No additional cables are required.

Note

Flush-mount cameras are also known as rear cameras.

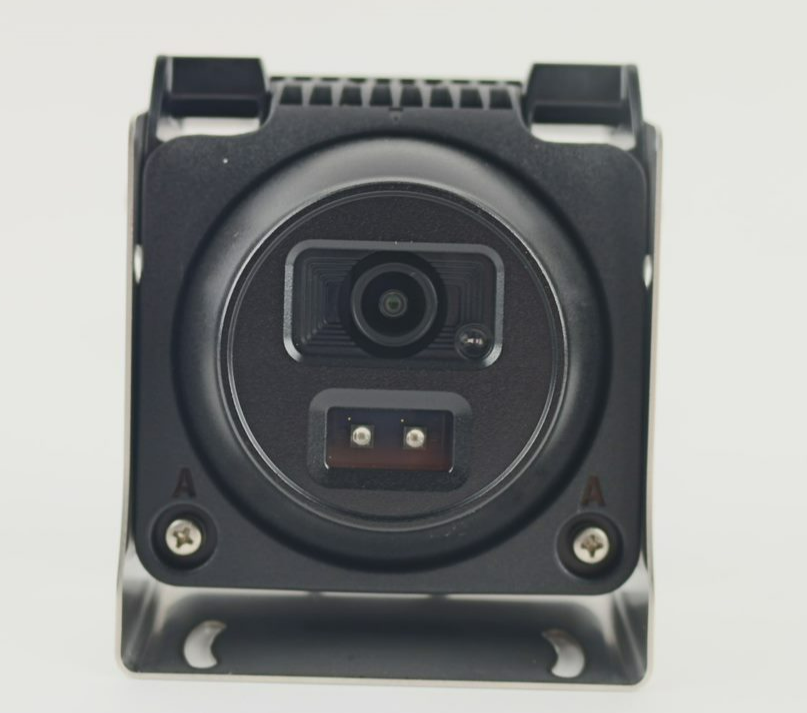

The following table describes the specifications of the DC-ACW-02 Wi-Fi auxiliary camera with flush mount:

auxCamera_noWires

Element

Description

Mount

Flush (Rear)

Wi-Fi

Connects to the dashcam with Wi-Fi 802.11 b/g/n

Micro-SD

Built-in 64 GB micro-SD card

Lens

3.3 mm with day and night functionality

Supported resolution

Up to 1080p, 30 frames per second

Streaming and recording

720p, 30 frames per second

Field of view

Horizontal: 106°; vertical: 55.8°; diagonal: 126°

Manual angle adjustment

Night view distance

30 ft (9.14 m)

Waterproof and dustproof

IP69K

Power

12V or 24V DC

Power consumption

200 mA at 12V

Reset button

Included

Operating environment

Temperature with infrared on: -4° to 104° F (-20° to 40° C)

Temperature with infrared off: -4° to 140° F (-20° to 60° C)

Humidity: 20% to 55%, non-condensing

Dimensions

3.5*1.5*3.5 in (8.9*3.9*8.9 cm)

Weight

.99 lb (449 grams)

SKU

SRF-AUX-S51-02P

Accessories

1 mounting bracket

Important

The purpose of this DRAFT document is to educate the Lytx and Reseller-Partner sales and marketing teams on selling, marketing, messaging, and positioning points for the Surfsight® auxiliary cameras. Please note that this document has not yet been regionalized and is subject to change. This document is for Reseller-Partner use only.
