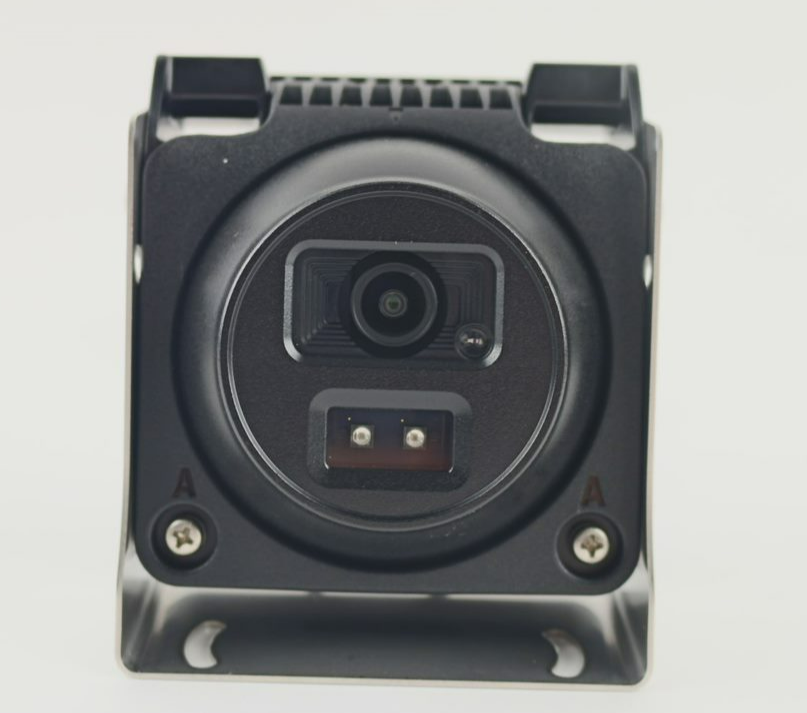

DC-ACE-01 wired auxiliary camera with wrap mount specifications

June 30, 2024 14:21

Surfsight®auxiliary cameras are cameras connected to the Surfsight®dashcam. When connected to the dashcam, the cameras enable live video and recording from the portal of additional perspectives during trips. The cameras are installed around the vehicle in key locations. All auxiliary cameras include a 64 GB SD card that stores approximately 100 hours of recordings. When the SD card is full, new recordings overwrite the oldest recordings.

Note

The power cable comes attached to the camera. Select the desired length of M12/RJ45 network extension cable (five or twenty meters) on the order form.

Note

Wrap-mount cameras are also known as side cameras.

The following table describes the specifications of the DC-ACE-01 wired auxiliary camera with wrap mount:

Element	Description
Mount	Wrap (side)
Wired	Connects to a router with an M12/RJ45 network cable
Micro-SD	Built-in 64 GB micro-SD card
Lens	3.3 mm with day and night functionality
Supported resolution	up to 1080p, 30 frames per second
Streaming and recording	720p, 30 frames per second
Field of view	Horizontal: 106°; vertical: 55.8°; diagonal: 126° Manual angle adjustment
Night view distance	30 ft (9.14 m)
Waterproof and dustproof	IP69K
Power	12V or 24V DC
Power consumption	200 mA at 12V
Reset button	Included
Operating environment	Temperature with infrared on: -4° to 104° F (-20° to 40° C) Temperature with infrared off: -4° to 140° F (-20° to 60° C) Humidity: 20% to 55%, non-condensing
Dimensions	3.51.53.5 in (8.93.98.9 cm)
Weight	.61 lb (276.7 grams)
SKU	SRF-AUX-S51-03P
Accessories	2 small hose clamps, 2 large hose clamps

Important

The purpose of this DRAFT document is to educate the Lytx and Reseller-Partner sales and marketing teams on selling, marketing, messaging, and positioning points for the Surfsight® auxiliary cameras. Please note that this document has not yet been regionalized and is subject to change. This document is for Reseller-Partner use only.
