This table features all of the cables currently used for the Surfsight® AI-12 dashcam.
|
SKU |
Part name |
Description |
Picture |
|---|---|---|---|
|

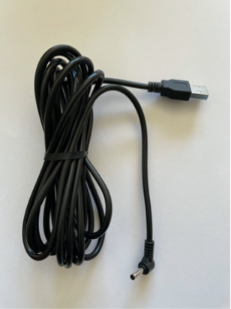

SRF-PER-USBCBL |
USB connector |
The USB power cable connects the AI-12 dashcam to a USB port. NoteThe USB cable does not provide constant 12V while the vehicle is turned off. NoteThe USB cable is intended for lab or desk use only, and is not supported for vehicle installation. |
|
|
SRF-PER-OBD |
OBDII power cable |
The OBDII power cable connects the AI-12 dashcam to the vehicle's engine diagnostic port, and provides a constant 12V power source to the camera. The cable includes an OBDII female connector. |
|
|
CBL-HD-S50011P |
RP1226 |
A power cable that connects the AI-12 dashcam to an RP1226 port in heavy-duty vehicles and provides a constant 12V power source to the camera. |
|
|
SRF-PWCBL-250-000 |
J1939 green 9-pin |
A power cable that connects the AI-12 dashcam to a J1939 port in large commercial vehicles and provides a constant 12V power source to the camera. |
|
|
CBL-PWR-S50-011P |
iOX connector |
A connector that enables the camera to receive power from the Geotab device already connected to the constant power source in the vehicle. |
|
