View recordings from MyGeotab Map

Like events, you can also view video recordings directly from MyGeotab Map. Viewing from the Map area enables you to easily find recordings based on different points in the driver's trip.

Note

Ensure you have first configured the Trip Events plug-in.

These instructions are not relevant for the Order Now program. When ordering from Order Now, installation is automated for your convenience.

The AI-12 dashcam constantly records the trip on a local SD card. The video recordings from the dashcam can then be viewed and downloaded directly from MyGeotab, without access to the SD card in the camera.

The road-facing camera streams up to twenty four frames per second. The in-cabin camera streams fifteen frames per second.

You can access these recordings from Map and from the Recordings area. From the Map area, it's convenient to find recordings based on different points of the trip path.

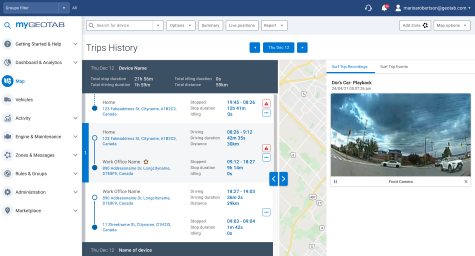

To view recordings directly from Map:

  1. Click the MyGeotab Map icon from the navigation bar to navigate to the Map area.

  2. Click the blue arrow next to the vehicle you want to view.

    A small menu opens.

  3. Select the Show trip tab.

    A list of all the trips from the last day loads.

  4. Select the trip you want to view.

    The trip loads on the map.

  5. From the right of the map, click Surf Trip Recordings to view the available recordings.

  6. Click on a point from the trip on the map where you want to start streaming the recording.

    A submenu opens.

  7. Select the camera you want to view.


    The selected video loads and starts streaming.
