Adjust the viewing angles of an auxiliary camera

Once you've connected the auxiliary camera to an ignition power source, paired it to the dashcam, and mounted it, you can adjust the viewing angles. Cameras with different viewing angles enable live view and recording of additional perspectives during trips.

This article describes how to adjust the viewing angles of:

Adjusting the viewing angles of a flush-mount camera

Note

Flush-mount cameras are also known as rear cameras.

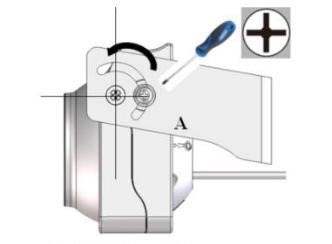

  1. Loosen the screws on each side of the mounting bracket, using a Phillips screwdriver.

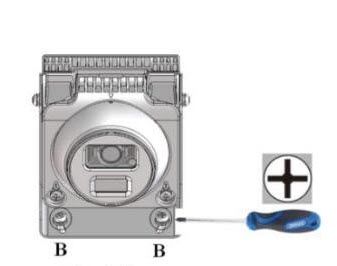

  2. Loosen the screws on each side of the lens at the bottom of the camera, using a Phillips screwdriver.

  3. Adjust the lens.

  4. Check the viewing angle of the lens through the Surfsight® Portal live view or from the dashcam recordings.

  5. Tighten the screws.

Adjusting the viewing angles of a wrap-mount camera

Note

Wrap-mount cameras are also known as side cameras.

  1. Loosen the screws on each side of the lens at the bottom of the camera, using a Phillips screwdriver.

  2. Adjust the lens.

  3. Check the viewing angle of the lens through the Surfsight® Portal live view or from the dashcam recordings.

  4. Tighten the screws.
