When identifying the appropriate location to mount the AI-12 dashcam, sit in the driver seat and operate the sun visors and rear-view mirrors and any other movable items mounted to the vehicle.
Ensure that you are not blocking the drivers view of the road and locate a position where the dashcam has a clear and unobstructed view of both the road ahead and the driver as per our guidance.

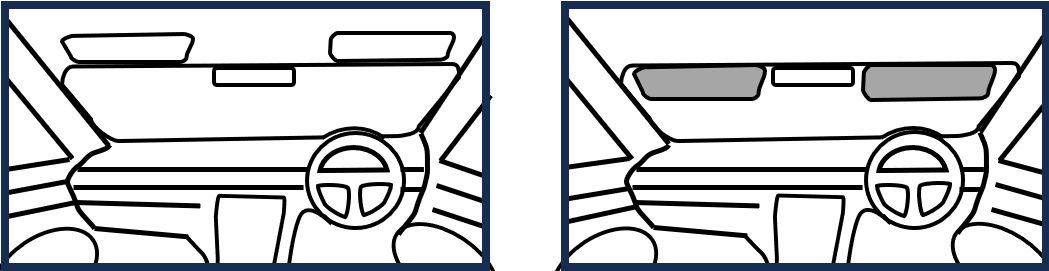

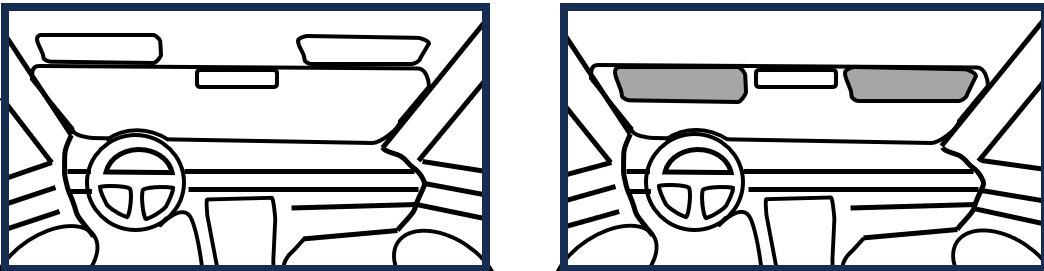

Example of typical vehicle with sun visors in both positions and rear-view mirror
Warning
Some countries/regions/jurisdictions have adopted, or may in the future adopt, laws that prohibit objects from being mounted on a vehicle’s windshield or other locations in a vehicle. Always refer to any applicable laws that concern mounting devices on vehicle windshields before choosing a mounting location. You are responsible for complying with such laws, as Lytx, Inc. does not accept responsibility for your failure to do so.

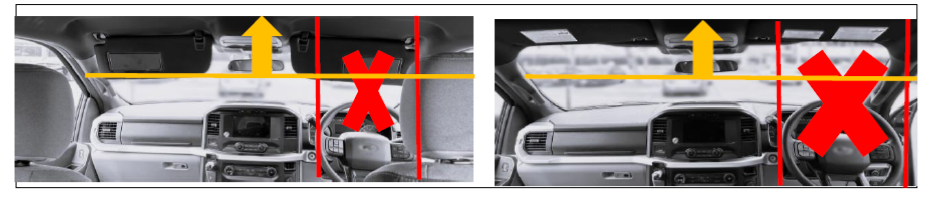

Generalisation of drivers view of the road guidance for Light duty vehicles
Using Live view to position the dashcam
-

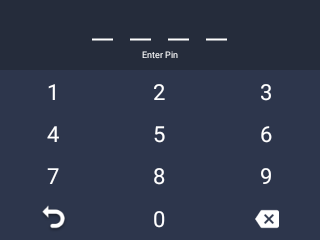

With power connected, press the touch screen of the dashcam to view the PIN screen.
-
Enter the default PIN 3333 to unlock the dashcam for the first time, or your own PIN subsequently.
-
Use this video to see this process: admin live view.mp4
-

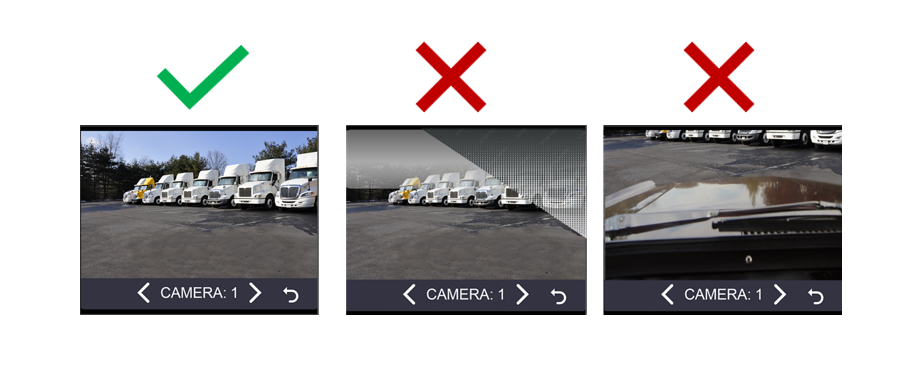

Use the dashcam views to position the dashcam.
Important

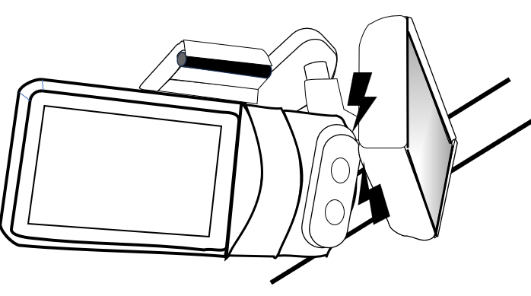

Ensure sufficient space to mount the AI-12 with the optional anti tamper cover installed.
-

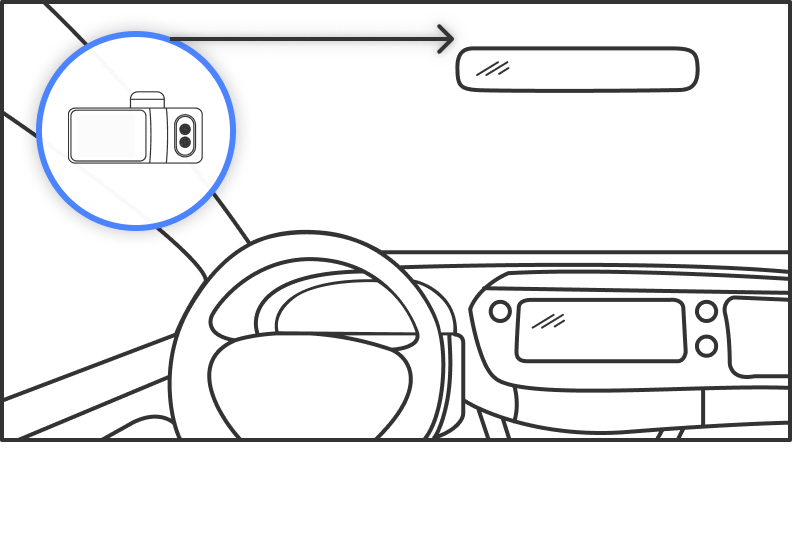

When positioning the dashcam, place it as high as possible on the driver's side of the vehicle. Dependent on the vehicles construction and drivers view of the road you may need to move the dashcam to an alternative location.
Caution
Dependent on the vehicle construction and drivers view of the road with sun visor and rear-view mirrors adjusted.
The dashcam can be placed to the passenger side and or central below the rear-view mirror. Make sure that you comply with any Local Law/ regulations that prohibit or restrict where object can be placed on the windshield.
Warning
The dashcam must be installed at least 1.6 meters (63 inches) above the ground for road facing ADAS.
Warning
Some countries/regions/jurisdictions have adopted, or may in the future adopt, laws that prohibit objects from being mounted on a vehicle’s windshield or other locations in a vehicle. Always refer to any applicable laws that concern mounting devices on vehicle windshields before choosing a mounting location. You are responsible for complying with such laws, as Lytx, Inc. does not accept responsibility for your failure to do so.
Ensure that:
-

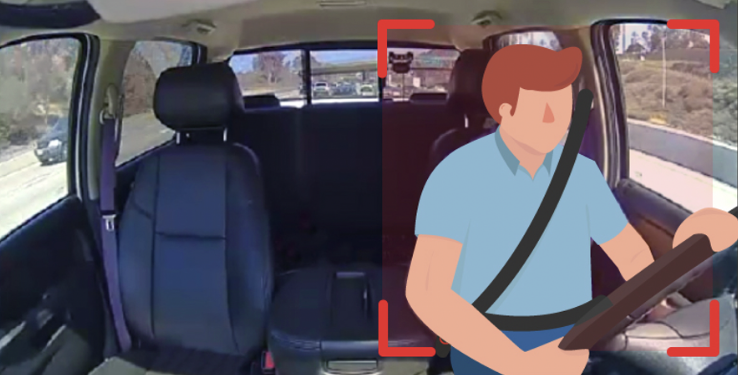

There is a clear view of the driver's upper body.
Note
When using MV+AI, the driver's upper body must be in view of the in-cab lens.
-
There is a clear view of the road.
-
The dashcam doesn't obstruct the driver's field of vision.
-
The dashcam doesn’t interfere with the driver’s operation of the vehicle.
-
The dashcam is in the vehicle's wiper path so the road-facing lens is not obstructed by rain or snow.
-
Nothing in the cab blocks the in-cab lens, such as sun visors, blinds, or mirrors.
Note

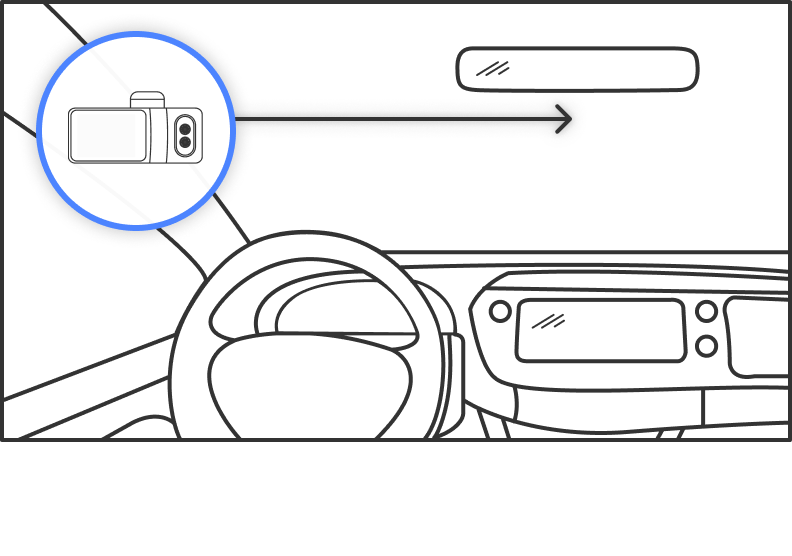

If the dashcam does not capture the driver’s upper body, place the dashcam below the rearview mirror, as high as possible without obstructing the dashcam's view of the driver.
Warning
Positioning must comply with applicable law for relevant jurisdictions.
