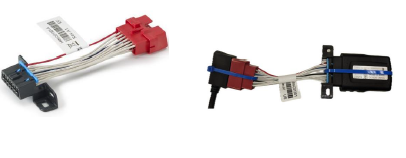

The HRN-CG13S1-A Adapter
The HRN-CG13S1-A adapter is required for certain vehicles.
NOTE: Please make sure that 24V vehicles use the HRN-CG13S1-A Adapter.
Without the adapter, possible power transients on Pin 1 for select 12V and 24V vehicles have the potential to damage the SWC chip on the GO9 device. The HRN-CG13S1-A adapter is designed to eliminate any power or signal on Pin 1 from the Original Equipment Manufacturer (OEM) diagnostic port.
The HRN-CG13S1-A adapter is required for the following vehicles:
Caution

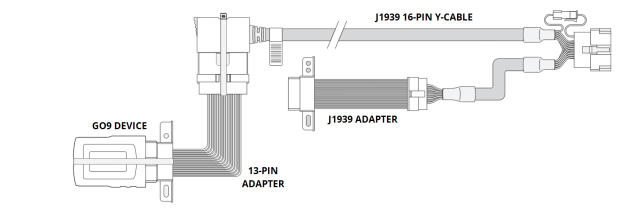

The HRN-CG13S1-A adapter is installed between the HRN-GS16K2 or HRN-GS16K22 harness and the GO device. Always use the adapter harness (HRN-CG13S1) with the GO9 (pre-V2) for heavy-duty trucks to avoid possible damage to the GO9 device.-
12 V vehicles with Volvo or Mack engines
-
All 24 V vehicles
|
1-2U |
|
North American Flange Mount Ford GM Chrysler |
3 |
|
North American Snap-In Mount Chrysler |
||
|
4 |
|
North American Slide & Lock Mount Ford GM |
5 |
|
European Lock Mount Mercedes BMW Iveco |
||
|
6 |
|
Asian Snap-In Toyota Hyundai Kia Ford Honda Iveco |
7 |
|
European Latch & Snap FIAT Citroën Peugeot |
||
|
8 |
|
VW Snap-In Volkswagen Audi Bently Porsche Skoda SEAT |
9 |
|
BMW Slide & Lock BMW |
||
|
10 |
|
Ford Round Snap-In Ford |
11 |
|
MAN/DAF Slide & Lock MAN/DAF |
||
|
12 |
|
Volvo Slide Mount Volvo |
13 |
|
Heavy-Duty Volvo Slide Mount Volvo (HD) Scania MAN |
