Connect the dashcam to the following:
-
Constant 12V or 24V minimum 2A power source
-
Vehicle ignition-switched power source providing at least 1A
-
Vehicle ground/earth point
Note
You will need a self-sealing ring terminal which is not included in the kit.
-
A red wire (VBATT & Fused) to connect the dashcam to constant power via a 2 Amp fuse
-
A brown wire (IGNITION & Fused) to connect the dashcam to ignition power via a 1 Amp fuse
Note
The hardwire kit includes a dashcam connector, a black ground wire for a metal ground bolt, a brown wire to connect the dashcam to ignition power, and a cable with a Molex connector to connect to the dashcam.
Warning
This installation must be performed by a qualified professional. Working with your vehicle's power system can be dangerous. Consult a professional for guidance.
Note
Make sure you are using the appropriate add-a-fuse for the vehicle's specific fuse box.
Note
You can purchase an Add-A-Fuse circuit tap from our order form.
Required Items:
|
|
|
|
|
|
|
|
|
|
|
To hardwire the dashcam:
Important
Only a properly qualified technician should install and maintain the Surfsight powered by Lytx dashcam. Any electrical work should be performed only by a suitably trained and qualified automotive technician with qualification applicable to your country/ region/ state; and with an expertise in installing and troubleshooting advanced onboard components, including multiplexed circuits. Lytx, Inc. disclaims all responsibility for any damages arising from improper installation and maintenance of the Surfsight device.
Important
Make sure that the wiring cables and installation activities do not interfere with any airbag-related mechanisms or normal vehicle operations. Make sure the wiring cables are clear of any sharp edges, moving parts, and can't get pinched in the door jamb. The cables should be tucked away and secured behind panels wherever possible. Use cable ties at least every foot/ 30.48 cm, or as necessary, along the route of any cables to secure them in place.
Warning
Locate your fuse box Always refer to the vehicle manufacturer’s service manual/ up-fitter (body builder) sites for proper installation and wiring of any aftermarket devices, including the Surfsight A1-14. Check the owner's manual of the vehicle to find the fuse box, which may be in different places depending on the vehicle model. Remove the plastic panel to access the fuse box. Open the fuse box by lifting a tab and pulling it toward you or with a trimming tool.
Warning
All wires that carry electrical current to the Lytxdevice(s) must be fused. Failure to fuse the constant power wire can lead to serious personal injury and/or property damage. If any wires or cables containing fuses/fuse boxes need to be cut or otherwise shortened or extended, always be certain to replace such fuses/fuse boxes or install new ones.
Warning
Never wire the Surfsight device(s) in a manner that shares a connection with another aftermarket product in the vehicle. Independent connections should always be used.
Warning
Only approved wire connection methods are recommended. Refer to the vehicle manufacturer’s service manual to determine if sealing crimp connections, Add-A-Fuse (Add-A-Circuit), sealing butt connections, or OEM connections to open connection ports are approved. Never use plier tap products such as insulation displacement connectors (i.e., ScotchLoc connectors) when installing the Surfsight device(s) (unless mandated by the vehicle manufacture i.e., BMW).
-
Locate the vehicle fuse box.
-
Use a multimeter to test which fuse is constant.
-
To identify a constant power fuse (one that stays on when the car is off), test it with the vehicle doors in various states: open, closed, and locked. Additionally, confirm that the add-a-fuse you are using is the correct type for the vehicle's fuse board.
-
Use a multimeter to test which fuse is Ignition power. Find an ignition power fuse by testing potential locations multiple times while vehicle accessories are turned on. This type of fuse stays powered from the moment the ignition is turned on, through cranking, and while the engine runs. In addition, confirm your add-a-fuse is compatible with the vehicle's fuse box.
-

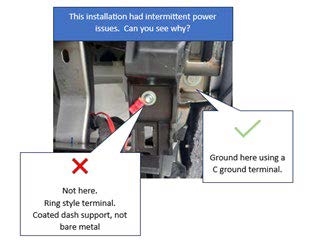

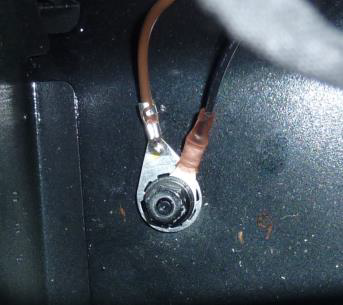

Ground wire: Locate a vehicle ground point and connect the ground wire to it. Ensure the metal contact areas are clean for a good connection. Terminate the ground wire with a self-sealing crimp ring terminal (not included).
Note
A loose ground wire can result in power issues for your dashcam.
Note
When connecting the ground wire using the pre-installed C-terminal, avoid excessive tightening. Overtightening can result in an unreliable ground connection during operation.
Warning
Do not let wiring or installation affect airbags or their deployment. Check the vehicle manufacturer's resources for airbag sensor and system locations, as well as any installation limitations.
-
Route the power cable from the vehicle fuse board to the dashcam mount area by going up the 'A' pillar and along the headliner. Make sure it is positioned so you can access it even after the installation is complete.
-
Keep wiring cables away from sharp edges and moving parts. Avoid routing them where they could get pinched in door jambs.
-
Use cable ties at least every foot (approximately 30 centimeters), or as necessary, along the route of any cables to secure them in place.
-
Identify if the vehicle is equipped with a Supplemental Restraint System (SRS). To prevent interference with airbag mechanisms or normal vehicle operations, carefully route wiring and perform installation activities.
-
Carefully route the power cable to avoid any SRS (Supplemental Restraint System) components. Use cable ties to secure it every 12 inches (approximately 30 centimeters or 300 millimeters) along its length, ensuring it does not restrict SRS functionality.
-
Start your vehicle to test the dashcam.
Caution
Routing the cable underneath the window and door trim may be necessary. This trim is typically held by snap-fit clips. In vehicles with side and curtain airbags, these clips are often designed for single use and will need to be replaced once removed. Refer to the vehicle service manual for detailed removal and replacement procedures.
