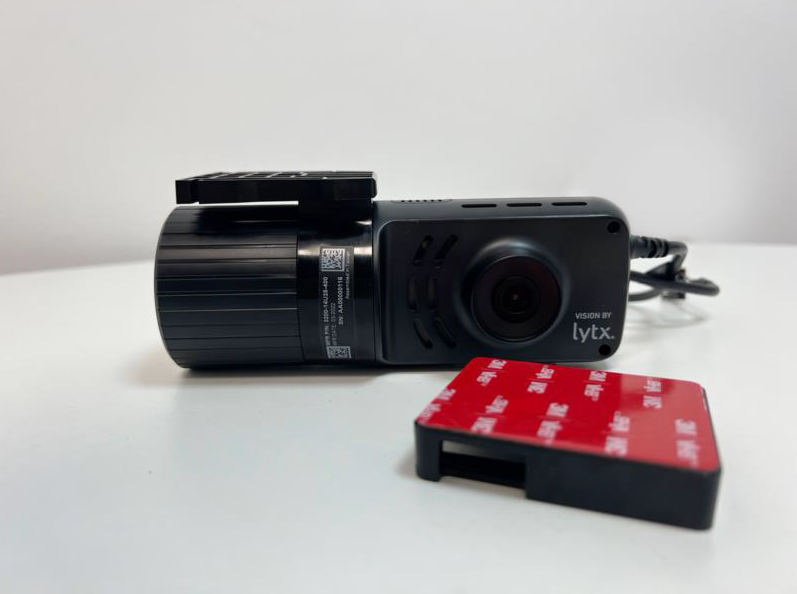

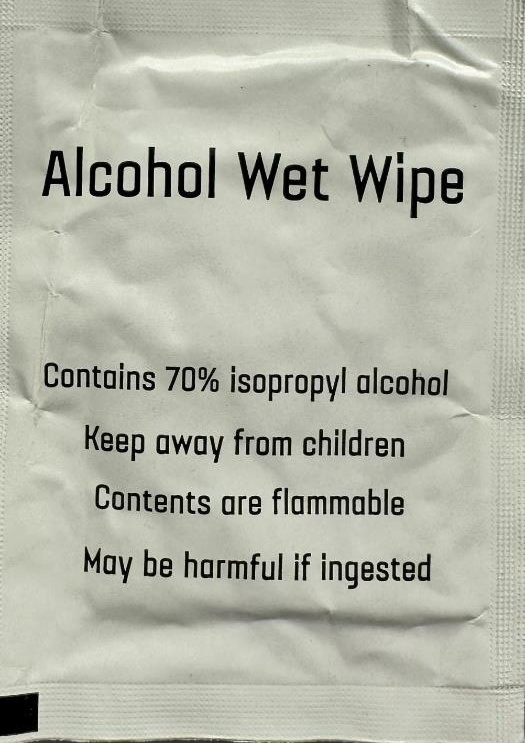

The following items are included in the dashcam box: The AI-14 dashcam, with the pre-installed SIM and Micro-SD cards, the mounting bracket, the QR code to access the installation instructions, alcohol wipes, and the notification window sticker.
Note
Take note of the dashcam's IMEI number. The IMEI number is on a sticker on the dashcam itself and on the back of the dashcam box. You will need this number when setting up the dashcam, and to get support.
The following items for the AI-14 dashcam are supplied separately. You can purchase these items from our order form:
-
OBD Y Harness
-

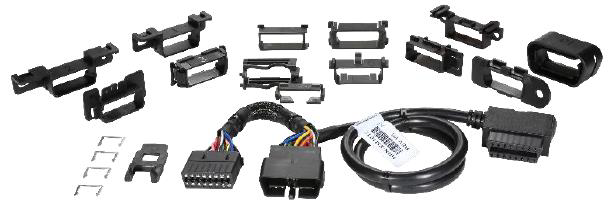

OBD T Harness (OBDII ‘T’ Harness with OBD port adaptors (required if the OBD Telematics device is installed) and to keep the OBDII vehicle port open for diagnostics.)
-

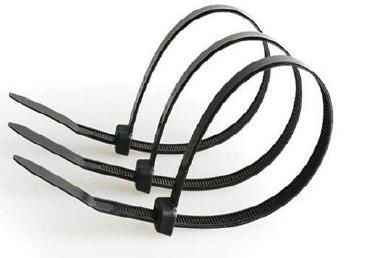

Zip (Cable) Ties
-

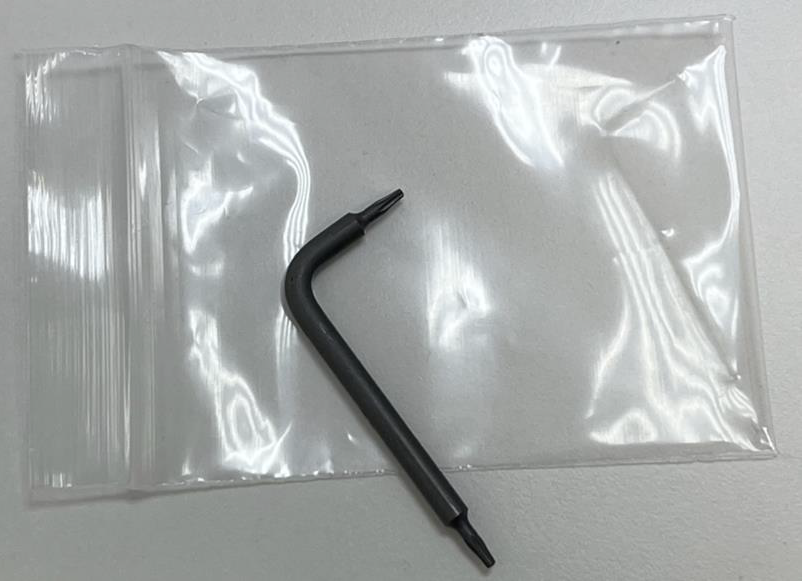

Assorted hand tools
-
5 meter (16 ft) measuring tape
Hardware Cable
Prepare a cable with three wires, a dashcam connector, and a black ground wire.
The wires require a 12V or 24V power source.
-

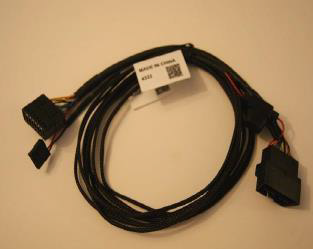

A cable with three wires and a dashcam connector:
-
A black ground wire for a metal ground bolt
-
A red wire to connect the dashcam to constant power
-
A brown wire to connect the dashcam to ignition power
-
A cable with a Molex connector to connect to the dashcam
-
Note
You will need a self-sealing crimp ring terminal that fits the vehicle's ground point.
